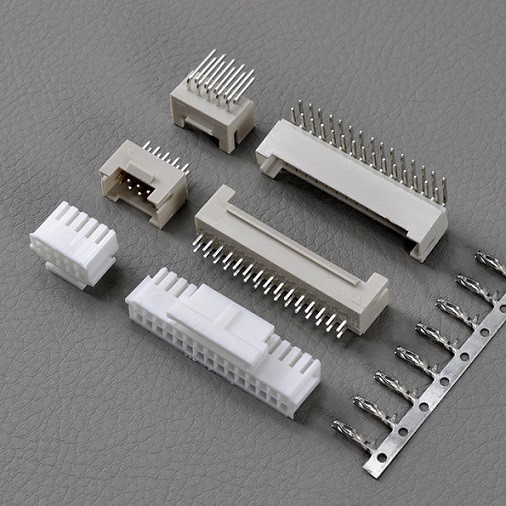

2.00mm Pitch YEONHO SMH200 Double With Lock Wire to Board Connector

  • Model: KLS1-XL11-2.00
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2.00mm Pitch YEONHO SMH200 Double With Lock Wire to Board Connector

Order information:
KLS1-XL11-2.00-2×02-H1
Pitch:2.00mm
Pins:No.of 2x02pins~2×20 pins
H1 H2-Housing   T-Terminal  S1 S2-Straight male pin  R1 R2-Right angle male pin
Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:800V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range  : AWG#22~#28
