2.00mm Pitch JST PHSD Double With Lock type Wire to Board Connector

  • Model: KLS1-XL4-2.00
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

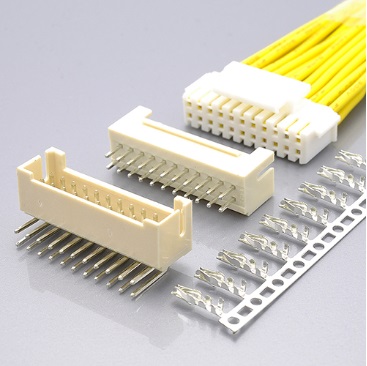

2.00mm Pitch JST PHSD Double With Lock type Wire to Board Connector

Order information:
KLS1-XL4-2.00-2×02-H
Pitch:2.00mm
Pins:No.of 2x02pins~2×20 pins

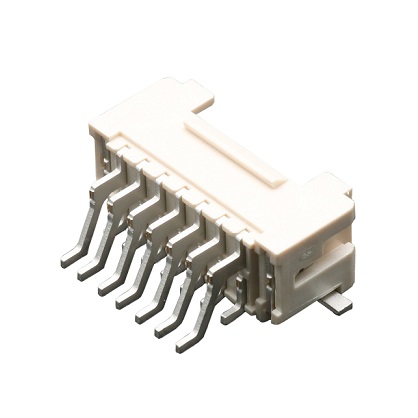

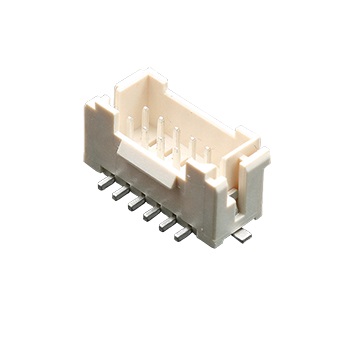

H-Housing   T-Terminal  S-Straight male pin  R R1-Right angle male pin  VM-Vertical SMT Pin  RM-Horizontal SMT Pin
Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:2.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:800V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range  : AWG#24~#30
