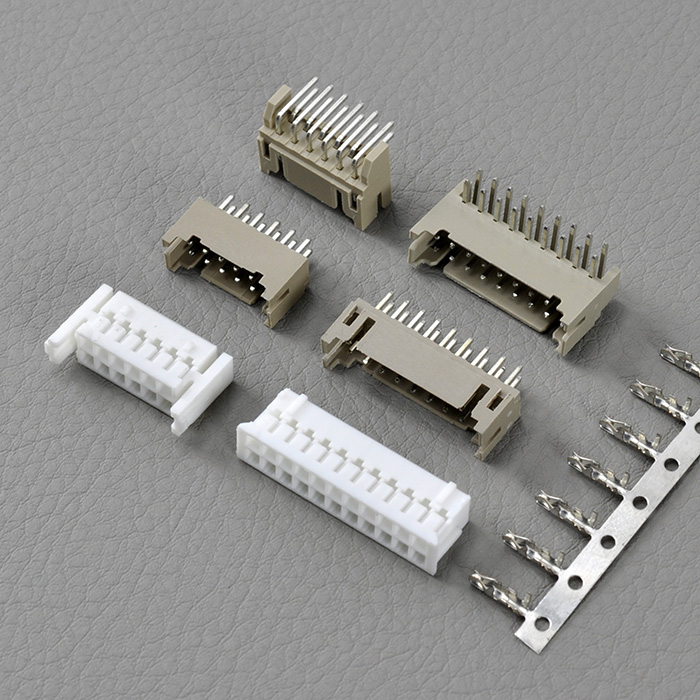

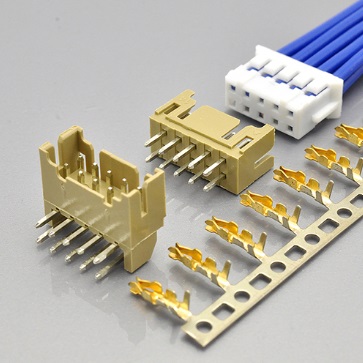

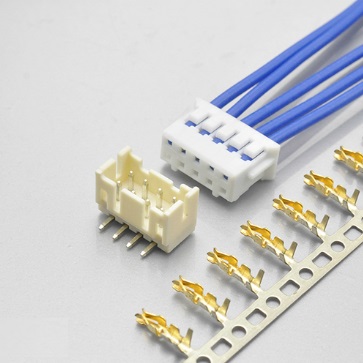

2.00mm Pitch JST PHD type Double Wire to Board Connector
- Product Details
2.00mm Pitch JST PHD type Double Wire to Board Connector
Order information:
KLS1-XA1-2.00-XX-H
Pitch:2.00mm
XX-No.of 04~40 pins
H-Housing S-Straight male pin R RD-Right angle male pin VM-Vertical SMT Pin T-Terminal
H2-Housing S2-Straight male pin R2-Right angle male pin
H3-Housing S3-Straight male pin R3-Right angle male pin
Specifications
◆Material: PA66/PA9T UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:800V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#24~#28
