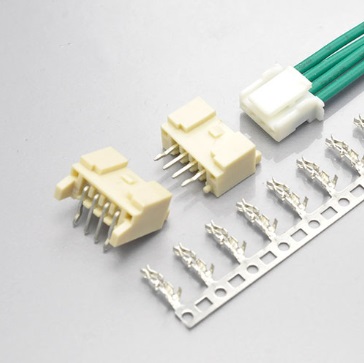

2.00mm pitch JST PA With lock Wire To Board Connectors
- Product Details
2.00mm pitch JST PA With lock Wire To Board Connectors
Order information:

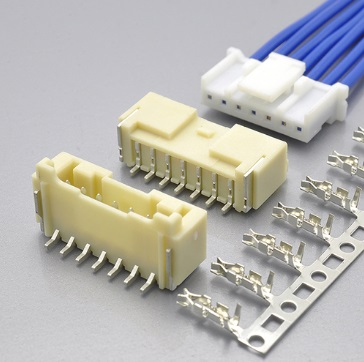

KLS1-HX200-XX-H
Pitch:2.00mm
XX-No.of 02~15 pins
H-Housing T-Terminal S-Straight male pin R-Right angle male pin VM-Vertical SMT Pin RM-Horizontal SMT Pin
Specifications
◆Material: PA66/PA9T UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:800V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#24~#30
