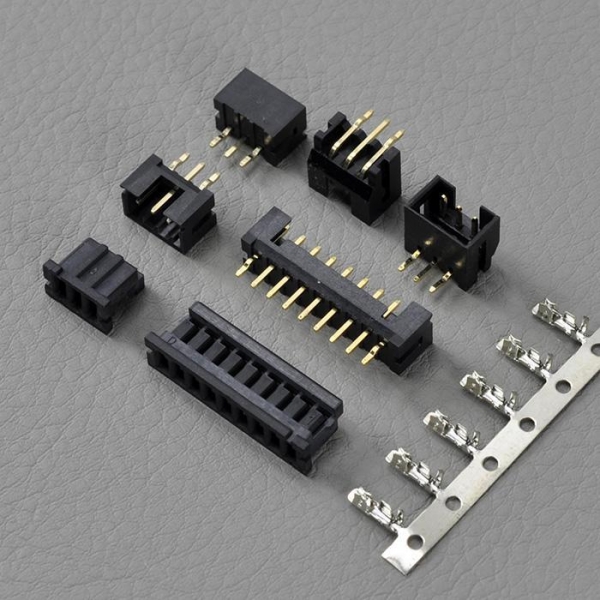

2.00mm Pitch HRS DF3 Wire to Board Connector
- Product Details
2.00mm Pitch HRS DF3 Wire to Board Connector
Order information:
KLS1-XL8-2.00-XX-H
Pitch:2.00mm
XX-No.of 02~15 pins

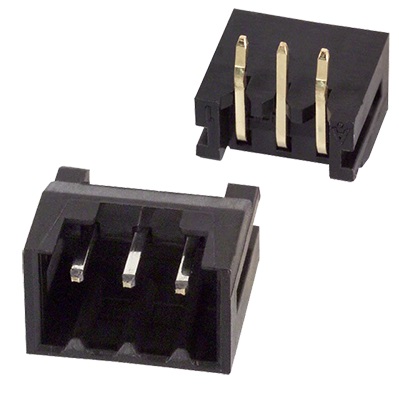

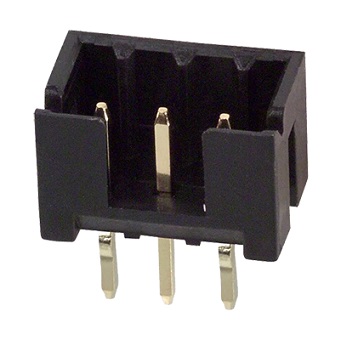

H-Housing T-Terminal S-Straight male pin R-Right angle male pin
Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:650V AC minute
◆Contact resistance:30mΩ Max.
◆Wire range : AWG#22~#28
