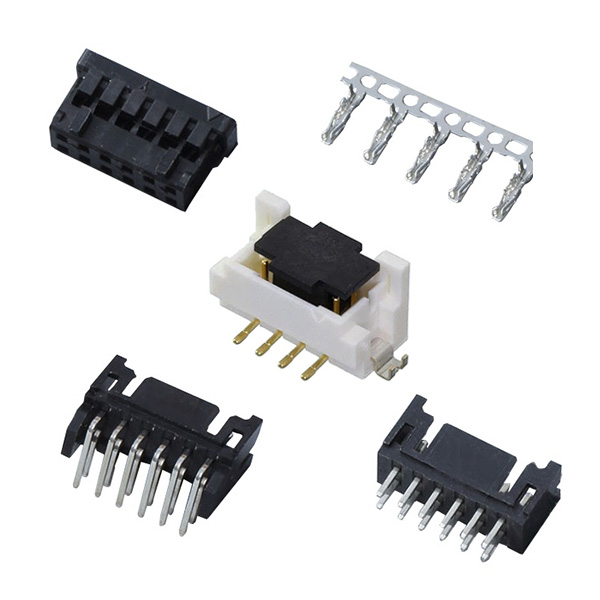

2.00mm Pitch HRS DF11 Wire to Board Connector
- Product Details
2.00mm Pitch HRS DF11 Wire to Board Connector
Order information:
KLS1-XL10-2.00-2×02-H
Pitch:2.00mm
2-Double layer
02-No.of 02~20 pins

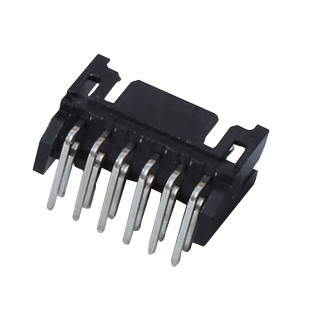

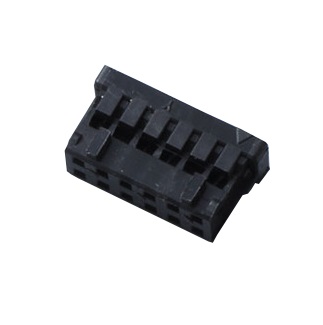

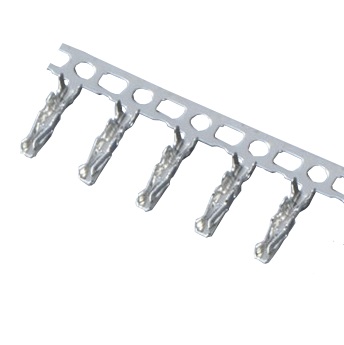

H-Housing T-Terminal S-Straight male pin R-Right angle male pin VM-Vertical SMT Pin
Specifications
◆Material: PA66/PA6T UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:2.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:800V AC minute
◆Contact resistance:30mΩ Max.
◆Wire range : AWG#24~#28
