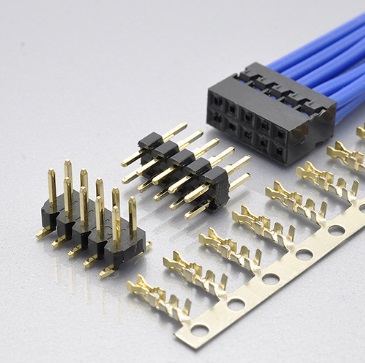

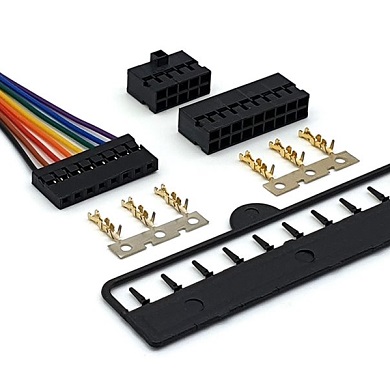

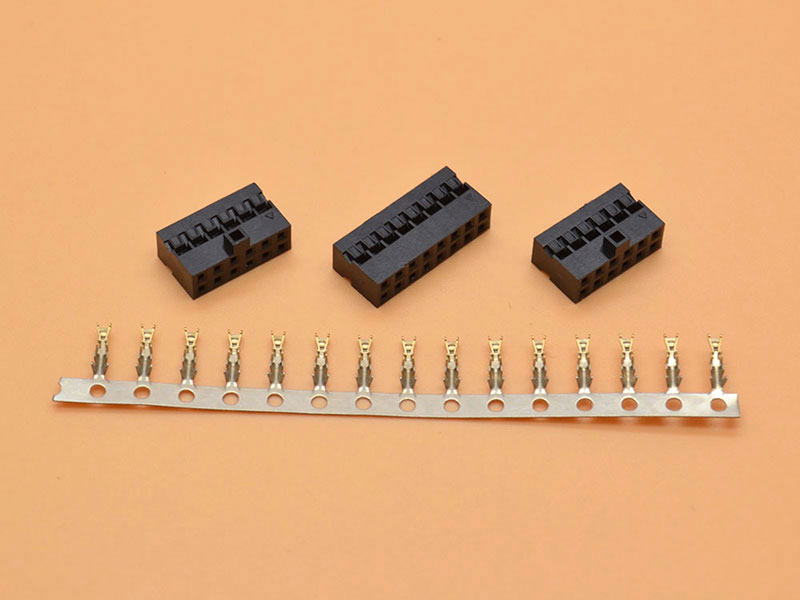

2.00mm pitch Dupont Wire To Board Connectors
Order information:
KLS1-540B-1×02-H
Pitch:2.00mm
1-Single layer  2-Double layer
02-No.of 02~44 pins
H H1-Housing   T-Terminal
Specifications
◆Material: PA66/PBT UL 94V-0
◆Finish : Plated Tin over Nickel
◆Current rating:2.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1000V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range  : AWG#26~#32

KLS1-540B.pdf
