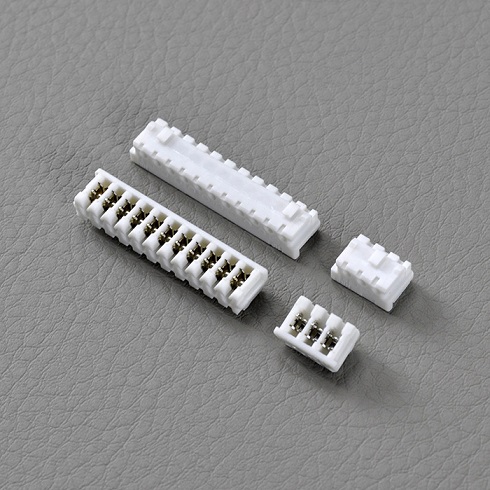

2.00mm AMP IDC type Wire Connector
- Product Details
2.00mm AMP IDC type Wire Connector
Order information:
KLS1-XL6-2.00-02
Pitch:2.00mm
Pin numbur:2~15 pins
Specifications
◆Material: Nylon UL 94V0 (Lead Free)
◆Contact : Phosphor Bronze
◆Finish : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:2A AC,DC
◆Voltage rating:125V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:1000MΩ/Min.
◆Withstanding voltage:1000V AC/minute
◆Contact resistance:20mΩ/Max.
