2.0/3.0mm Spacer Support

  • Model: KLS8-0227B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature:  0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H  50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance:    B-130°C  (30m without melting at 200 °C )

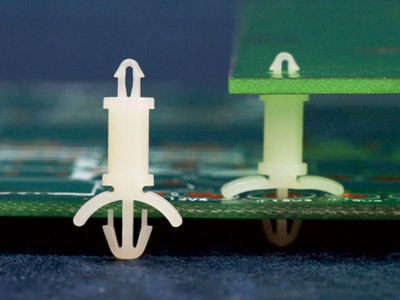

Application: the fixed PC board on the boards, free tools

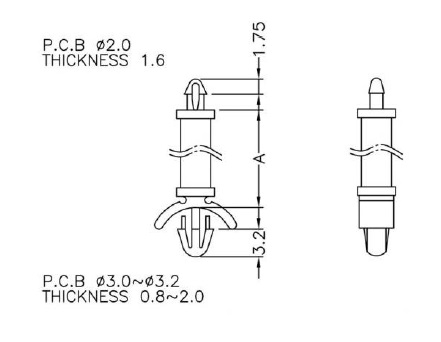

P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
　 mm mm mm mm mm 　 pcs
L-KLS8-0227B-03 3.2 2.0 1.6 3.0 0.8~2.0 Natural 1000
L-KLS8-0227B-05 4.8 2.0 1.6 3.0 0.8~2.0 Natural 1000
L-KLS8-0227B-06 6.4 2.0 1.6 3.0 0.8~2.0 Natural 1000
L-KLS8-0227B-08 7.9 2.0 1.6 3.0 0.8~2.0 Natural 1000
L-KLS8-0227B-09 9.5 2.0 1.6 3.0 0.8~2.0 Natural 1000
L-KLS8-0227B-11 11.1 2.0 1.6 3.0 0.8~2.0 Natural 1000
L-KLS8-0227B-13 12.7 2.0 1.6 3.0 0.8~2.0 Natural 1000
L-KLS8-0227B-14 14.3 2.0 1.6 3.0 0.8~2.0 Natural 1000
L-KLS8-0227B-16 15.9 2.0 1.6 3.0 0.8~2.0 Natural 1000
L-KLS8-0227B-17 17.0 2.0 1.6 3.0 0.8~2.0 Natural 1000
