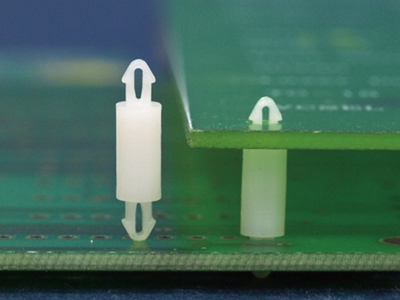

2.0/2.0mm Spacer Support

  • Model: KLS8-02372
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature:  0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H  50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance:    B-130°C  (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

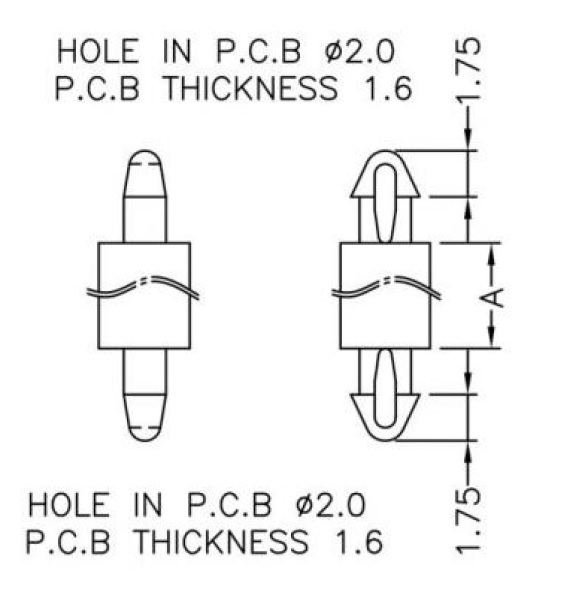

P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
　 mm mm mm mm mm 　 pcs
L-KLS8-02372-MAD-1.6 1.6 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
L-KLS8-02372-MAD-2.2 2.2 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
L-KLS8-02372-MAD-3 3.0 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
L-KLS8-02372-MAD-3.5 3.5 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
L-KLS8-02372-MAD-4 4.0 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
L-KLS8-02372-MAD-5 5.0 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
L-KLS8-02372-MAD-6 6.0 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
L-KLS8-02372-MAD-6.5 6.5 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
L-KLS8-02372-MAD-7 7.0 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
L-KLS8-02372-MAD-8 8.0 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
L-KLS8-02372-MAD-10 10.0 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
L-KLS8-02372-MAD-11 10.5 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
L-KLS8-02372-MAD-12.5 12.5 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
L-KLS8-02372-MAD-14 14.0 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
L-KLS8-02372-MAD-25 25.0 2.0 1.2~1.7 2.0 1.2~1.7 Natural 2000
