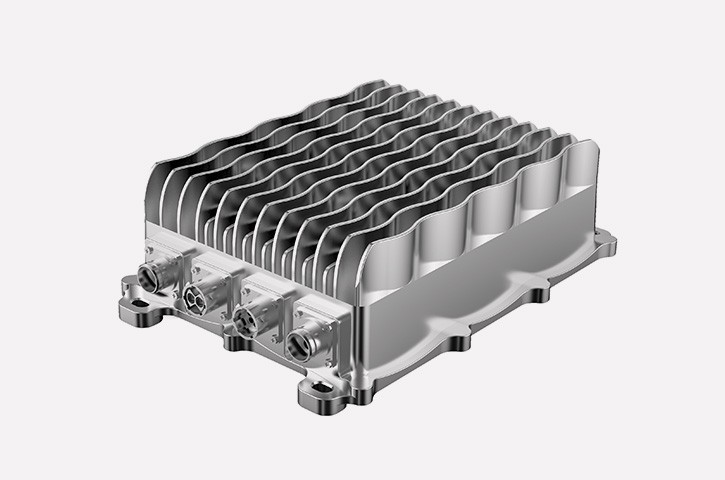

1KW DC/DC converter

  • Model: KLS1-DCDC-1KW-01
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

 Features of stable technical performance, high efficiency, small size, high protection level and high seismic level.
 Liquid cooling design.

Application:
 New energy vehicle
 Industrial control products
 Energy storage power station
 IDC Data Center
 Product size: 272*175*94mm (without plug-ins)
 Product weight: 2.0kg
 Rated input voltage: 144Vac/336Vac/384Vac (customizable)
 Rated output voltage: 14Vdc
 Maximum output current: 72A/108A
 Rated output power: 1KW
 Maximum output power: 1.2KW
 Efficiency: 95%
 Protection level: IP67
 Communication port: CAN2.0
