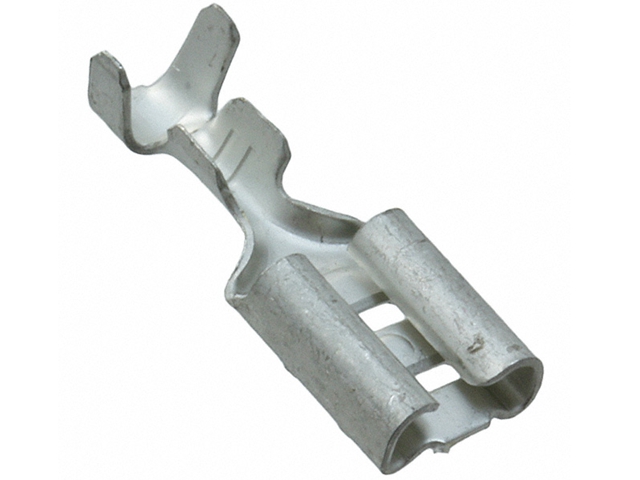

187 Type Straight Female,18~20AWG
- Product Details
| P/N | Material | Plating | Dimension(mm) | Wire Range | Q’TY | REMARKS | |||||||
| W | W1 | E | E1 | L | L1 | T | (AWG) | REEL | |||||
| L-KLS8-BFE01-1870300 | Brass | Tin | 5.60 | 5.9 | 15.5 | 0.30 | 18~20 | 10000 | TAB=0.3mm | ||||
| L-KLS8-BFE01-1870500 | Brass | Tin | 5.60 | 5.9 | 15.5 | 0.30 | 18~20 | 10000 | TAB=0.5mm | ||||
| L-KLS8-BFE01-1870800 | Brass | Tin | 5.60 | 5.9 | 15.5 | 0.30 | 18~20 | 10000 | TAB=0.8mm | ||||
