P/N | Material | Plating | Dimension(mm) | Wire Range | Q’TY | REMARKS | |||||||
W | W1 | E | E1 | L | L1 | T | (AWG) | REEL | |||||

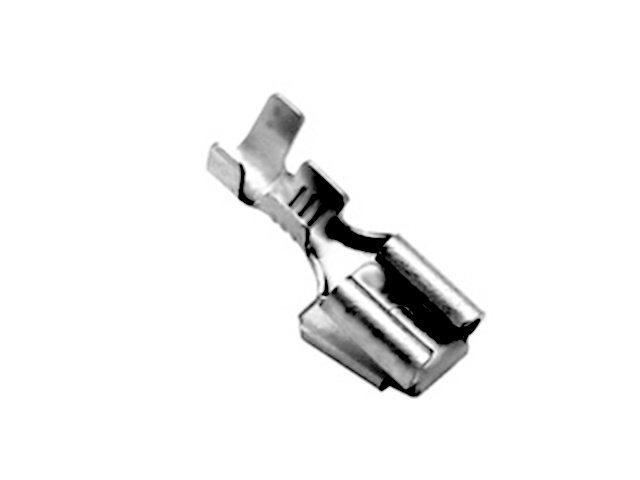

L-KLS8-BFM02-1870800 | Brass | Tin | 5.80 | 5.9 | 15.4 | 0.40 | 16+16 16+18 18+18 | 2000 | TAB=0.8mm |
