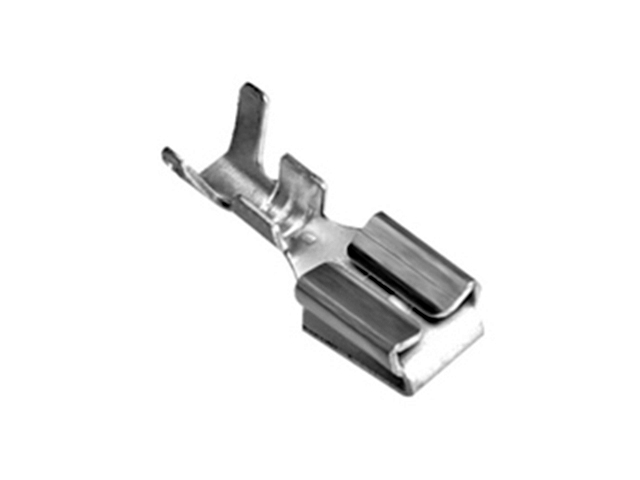

187 Type Piggy Back Female ,16~20AWG
- Product Details
| P/N | Material | Plating | Dimension(mm) | Wire Range | Q’TY | REMARKS | |||||||
| W | W1 | E | E1 | L | L1 | T | (AWG) | REEL | |||||
| L-KLS8-BFM01-1870500 | Brass | Tin | 5.90 | 6.2 | 15.0 | 0.50 | 16~20 | 2000 | TAB=0.5mm | ||||
| L-KLS8-BFM01-1870800 | Brass | Tin | 5.90 | 6.2 | 15.0 | 0.50 | 16~20 | 2000 | TAB=0.8mm | ||||
