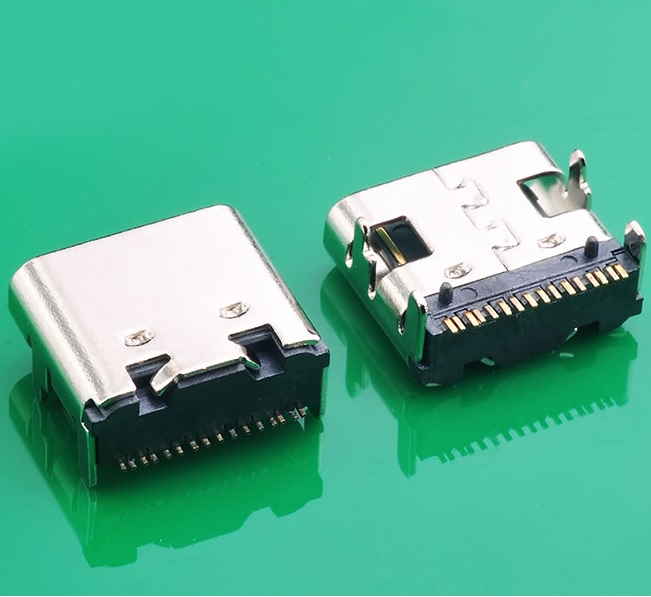

16P SMD L=7.35mm USB 3.1 type C connector female socket

Electrical
Current Rating: 1.5 A Max
Voltage: 30 VAC
Withstand Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ  Min.

Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

KLS1-5416.pdf
