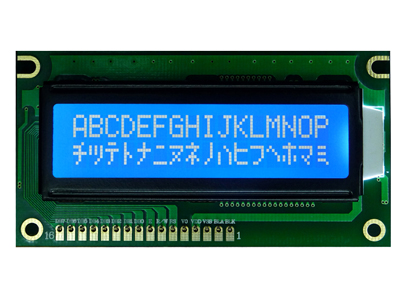

Display: 16×2 Character Type
OUTLINE: 84.0×44.0x12.5
V.A.: 65.0×16.0
Character Size:2.95×5.55
Dot: 0.55×0.65
View angle:6  O’clock
LCD type: STN/TRANSMISSIVE/NEGATIVE/BLUE
Driver Condition:1/16 duty cycle, 1/5 Bias
Backlight type: White-side backlight LED
Controller: SPLC780D1 or equivalent
Operating Temp.:-10ºC～+60ºC

KLS9-1602E.pdf
