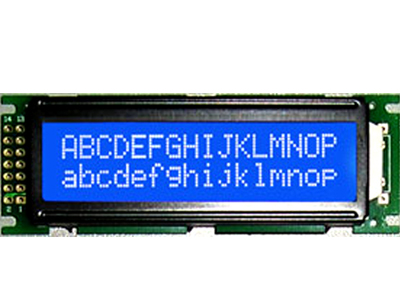

Display: 16×2 Character Type
OUTLINE:85.0×29.5×12.5
V.A.: 64.5×13.8
Character Size:2.95*4.35
Dot: 0.55×0.5
View angle:6  O’clock
LCD type: STN/TRANSMISSIVE/NEGATIVE/BLUE
Driver Condition:1/16 duty cycle, 1/5 Bias
Backlight type: White/Side Backlight LED
Controller: SPLC780D1 or equivalent
Operating Temp.:-10ºC～+60ºC

KLS9-1602M.pdf
