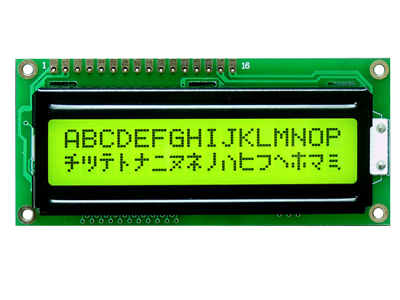

Display: 16×2 Character Type
OUTLINE: 80.0×36.0x13.5
V.A.: 64.5×13.8
Character Size:2.95×4.35
Dot: 0.5×0.6
View angle:6  O’clock
LCD type: STN/TRANSFLECTIVE/POSITIVE/ Yellow-Green
Driver Condition:1/16 duty cycle, 1/5 Bias
Backlight type: Yellow-Green bottom-light LED
Controller: SPLC780D1 or equivalent
Operating Temp.:-10ºC～+60ºC

KLS9-1602A.pdf
