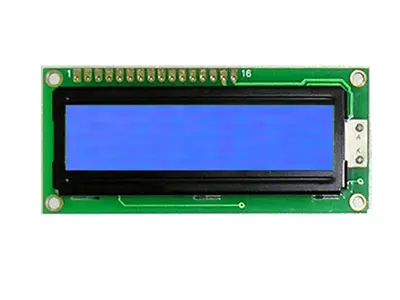

Display: 16×1 Character Type
OUTLINE: 80.0×36.0x13.5
V.A.: 64.5×13.8
Character Size:3.2×6.35
Dot: 0.6×0.75
View angle:6 O’clock
LCD type: STN/TRANSMISSIVE/NEGATIVE/BLUE
Driver Condition:1/16 duty cycle, 1/5 Bias
Backlight type: White side-light LED
Controller: SPLC780D1 or equivalent
Operating Temp.:-10ºC～+60ºC

KLS9-1601B.pdf
