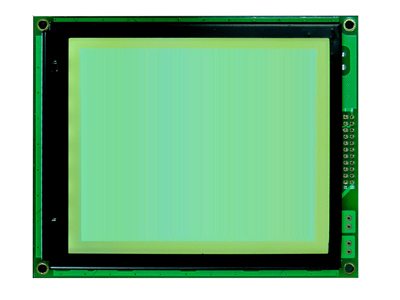

Display: 160×128 dot-matrix Type
OUTLINE: 129.0×102.0x12.5
V.A.: 101.0×82.0
Dot:  0.54×0.54
View angle:6  O’clock
LCD type: STN/Transflective/Positive/Yellow-Green
Driver Condition:1/128 duty cycle, 1/12 Bias
Backlight type: White/side backlight
Controller: T6963C or equivalent
Operating Temp.:-20ºC～+70ºC

KLS9-160128A.pdf
