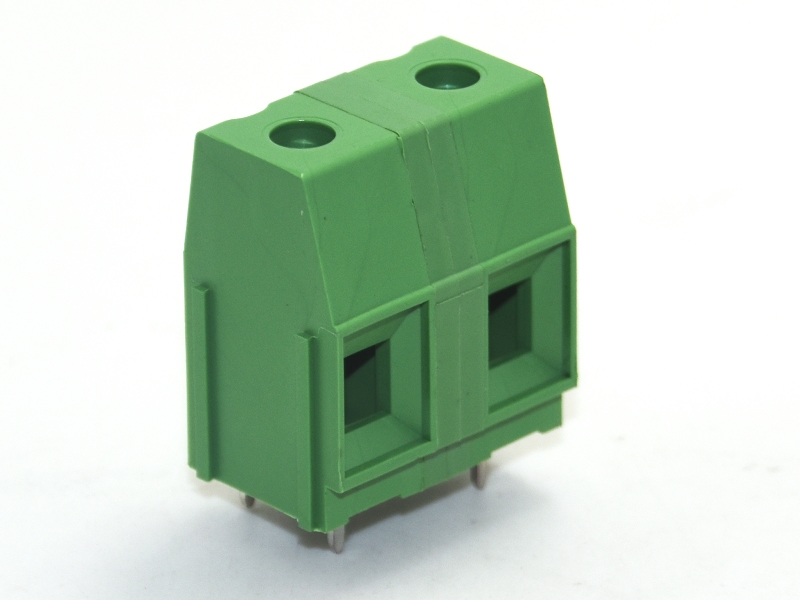

15.24mm Screw Terminal Block Rising clamp

  • Model: KLS2-116-15.24
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material:
Screw:         M4.0, steel,Zn plated
Cage:          Brass, Nickel plated
Pin header:  Brass, Tin plated
Housing:      PA66, UL94V-0,Green

Electrical:
Rated voltage:  300V
Rated current:  60A
Wire range:      20~6AWG  10mm2
Contact Resistance: 20 m Ω
Insulation resistance:  500MΩ/DC1000V
Withstand voltage:      AC2500V / 1 min

Mechanical:
Temp. Range:   -40 ° C ~ + 105 ° C
Soldering:         250 ° C   5Sec.  Max.
Torque:            1.2 Nm (10.5 Lb.) in
Strip length:     9~10 mm
