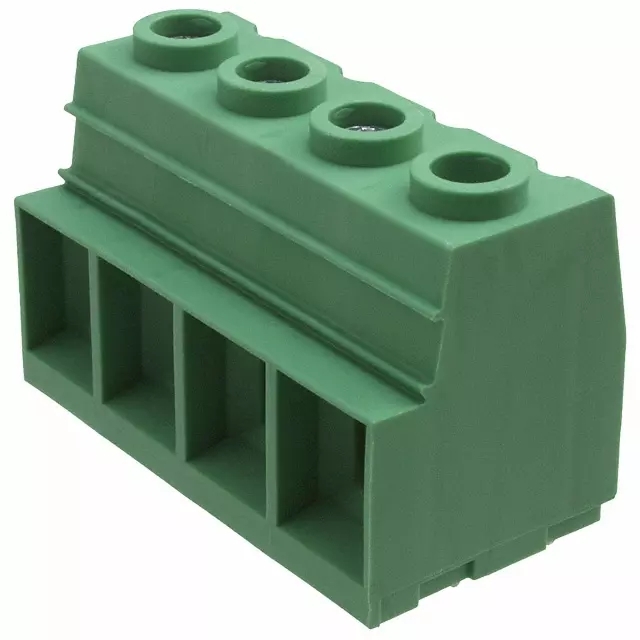

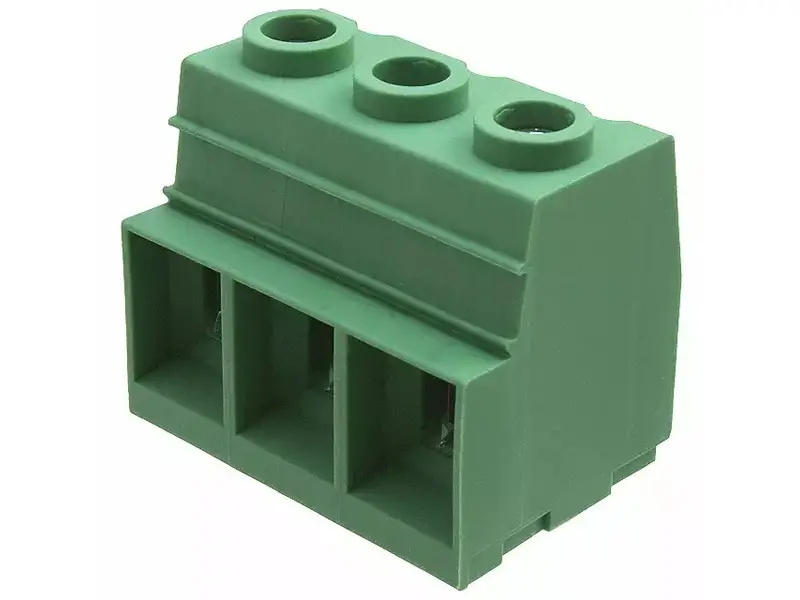

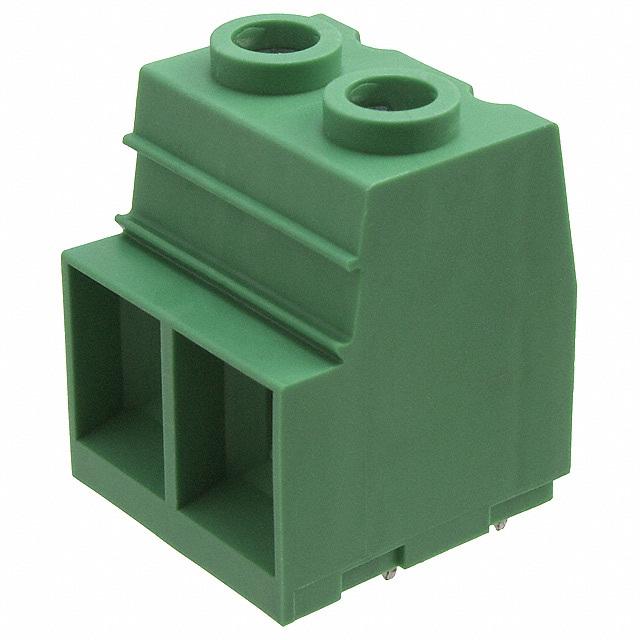

15.0mm Screw Terminal Block Rising clamp
- Product Details
Electrical:
Rated voltage:600V
Rated current:115A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC2200V/1Min
Wire range:20-2AWG3.5mm²
Rated voltage:600V
Rated current:115A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC2200V/1Min
Wire range:20-2AWG3.5mm²
Material:
Screws: M5steel Zinc plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Screws: M5steel Zinc plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical:
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 2.0Nm (10.6lb.in)
Strip length:17~18mm
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 2.0Nm (10.6lb.in)
Strip length:17~18mm
