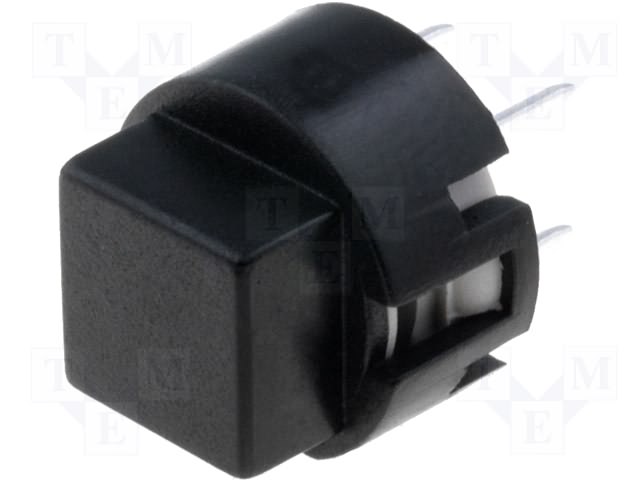

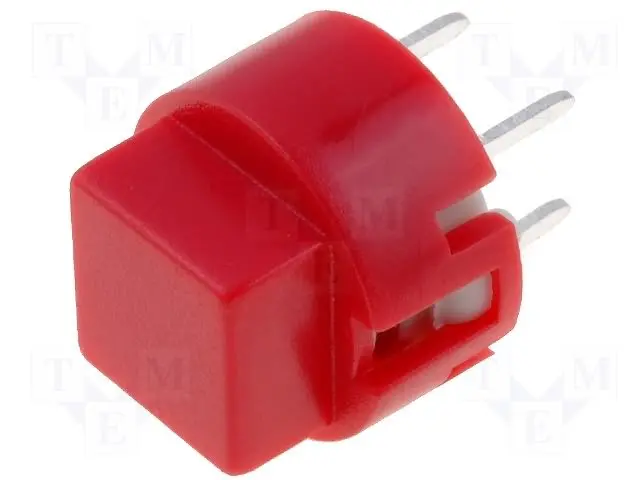

12mm Reset Tact Switch
- Product Details
SPECIFICATION:
Circuit: Push (ON)
Current Rating: 30mA
Voltage Rating: 30V DC
Dielectric Strength: 500VAC /1 minute
Contact Resistance: 100mΩ Max.
Operating Force: 200±50gf
Total Travel: 0.7±0.2mm
Life: 100,000 cycles Min.
Operating temperature: +10°C~+60°C
Color: R-Red Y-Yellow G-Green B-Black L- Blue
