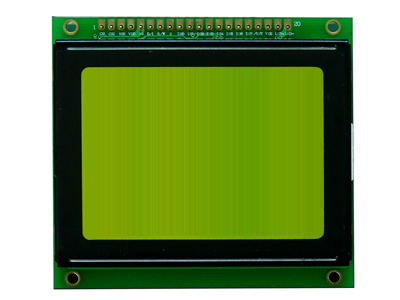

Display: 128×64 dot-matrix Type
OUTLINE: 78.0×70.0x12.5
V.A.: 62.0×44.0
Dot: 0.4×0.56
View angle:6  O’clock
LCD type: STN/Transflective/Positive/Yellow-Green
Driver Condition:1/64 duty cycle, 1/9 Bias
Backlight type: Yellow Green/Side Backlight
Controller: SBN0064B or equivalent
Operating Temp.:-20ºC～+70ºC

KLS9-12864H.pdf
