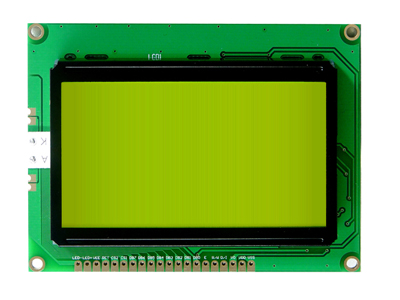

Display: 128×64 dot-matrix Type
OUTLINE: 93.0×70.0x13.5
V.A.: 72.0×40.0
Dot: 0.48×0.48
View angle:6 O’clock
LCD type: STN/Transflective/Positive/Yellow-Green
Driver Condition:1/64 duty cycle, 1/9 Bias
Backlight type: Yellow-Green/Bottom Backligh
Controller: SBN0064G or equivalent
Operating Temp.:-20ºC～+70ºC

KLS9-12864E.pdf
