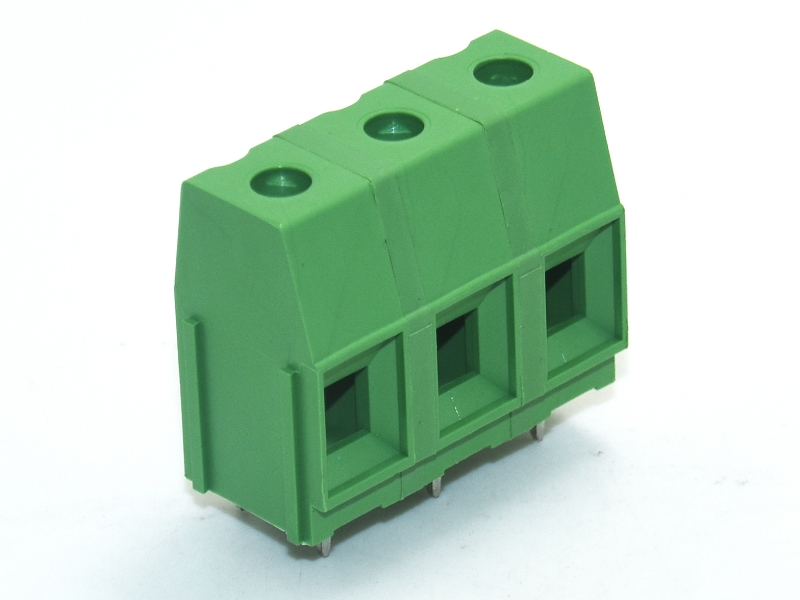

12.7mm Screw Terminal Block Rising clamp
- Product Details
Material:
Screw: M4.0, steel,Zn plated
Cage: Brass, Nickel plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0,Green
Electrical:
Rated voltage: 300V
Rated current: 60A
Wire range: 20~6AWG 10mm2
Contact Resistance: 20 m Ω
Insulation resistance: 500MΩ/DC1000V
Withstand voltage: AC2500V / 1 min
Mechanical:
Temp. Range: -40 ° C ~ + 105 ° C
Soldering: 250 ° C 5Sec. Max.
Torque: 1.2 Nm (10.5 Lb.) in
Strip length: 9~10 mm
