Electrical Specifications:
Insertion Loss: 1-100MHZ -1.0dB MAX
Return Loss: 1-30MHZ -16.0dB MIN
30-60MHZ -14.0dB MIN
60-80MHZ -1 0.0dB MIN
Cross Talk: 1-30MHZ -40.0dB MIN
30-60MHZ -35.0dB MIN
60-80MHZ -30.0dB MIN
CMR: 1M -100MHZ -35dB MIN
Hi-Pot: 1500v AC6S 1mA
OCL: 350uH MIN @ 100KHZ 100mV 8mA DC
Contacts: 0.35mm thick phos bronze plated with 6u’ gold in contact area

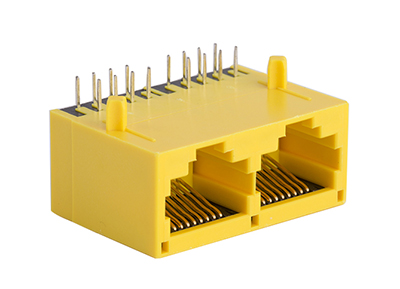

Housing Material: PBT YELLOW
Operating temperature range: -40℃-+85℃
Turn Ratio: 1CT : 1CT +/-3%

KLS12-TL141.pdf
