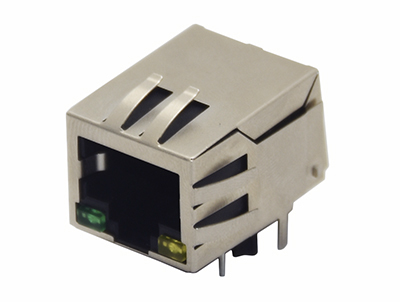

100Base 1×1 Tab-Down

  • Model: KLS12-TL002R
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical Specifications:
1.Insulation resistance: 500 megohms MIN @500VDC
2.Contact resistance: 50 milliohms Max
3.Turn Ratio: 1~2:J1~J2 =1CT : 1CT(±2%)
3~6:J3~J6 =1CT : 1CT(±2%)
4.OCL:350uH Min.at 100KHz 100mV 8mA DC
5.Insertion Loss:-1.0 dB Max 1MHz to 100MHz
6.Return loss:-16dB Min From 1MHz to 30MHz
-14dB Min From 30MHz to 60MHz
-10dB Min From 60MHz to 80MHz
7.Cross talk: -40dB Min From 1MHz-30MHz
-35dB Min From 30MHz-60MHz;
-30dB Min From 60MHz-100MHz;
8.CMR: -35dB Min From 1MHz-100MHz
9.Hi-Pot: 1500V AC 6S 1mA
