Electrical Specifications:
NOTES:

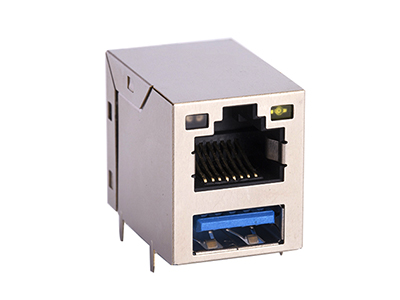

USB PART:
Plastic:PBT+30%GF or PA66+30%GF, BLACK
Shell: Brass or SPCC-SD: T=0.30, NI-PLATED
Terminal: Brass, T=0.25; Gold/Tin Plated
Insulation Resistance: 1000MQ Min
Contact Resistance: 30mQ Max
High Voltage: 500V AC
Insertion force: 3.57 Kgf Max
Withdrawal force: 1.02 Kgf Min

KLS12-TL148.pdf
