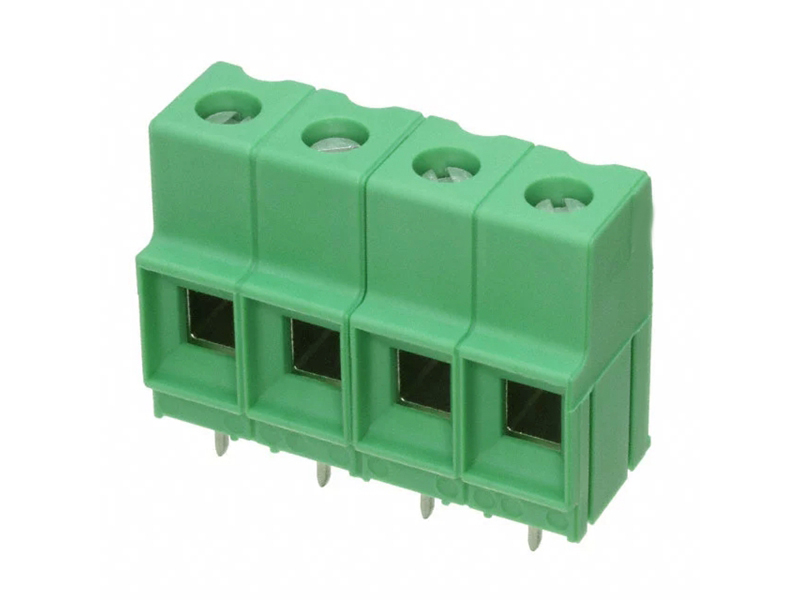

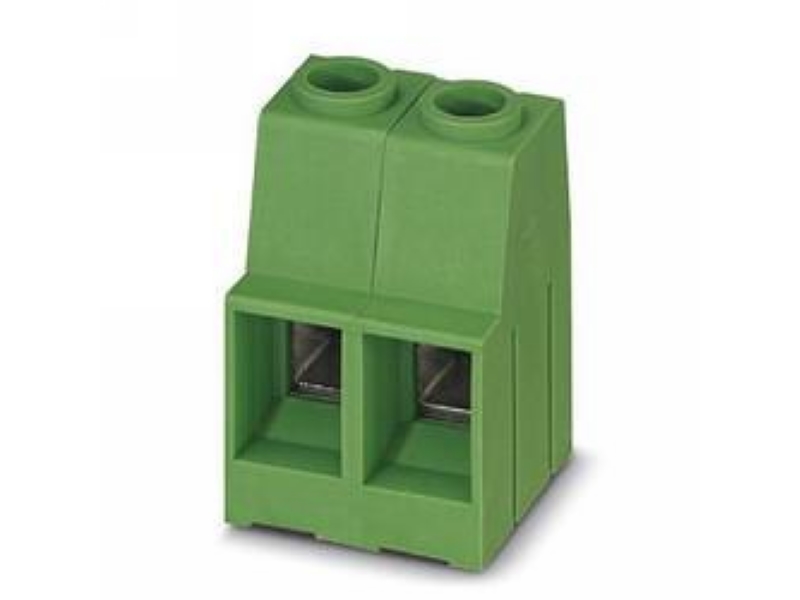

10.16mm Screw Terminal Block Rising clamp

  • Model: KLS2-151-10.16
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical :
Rated voltage:300V
Rated current:52A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC2200V/1Min
Wire range:20-6AWG10mm²

Material:
Screws: M4steel Zinc plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0

Mechanical:
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 1.2Nm (10.6lb.in)
Strip length: 10mm
