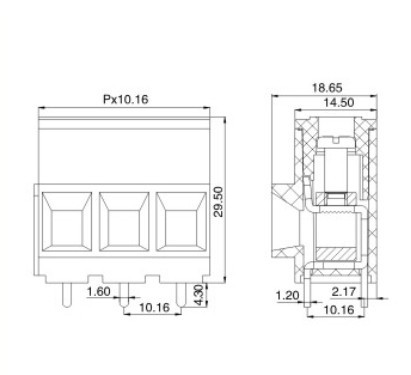

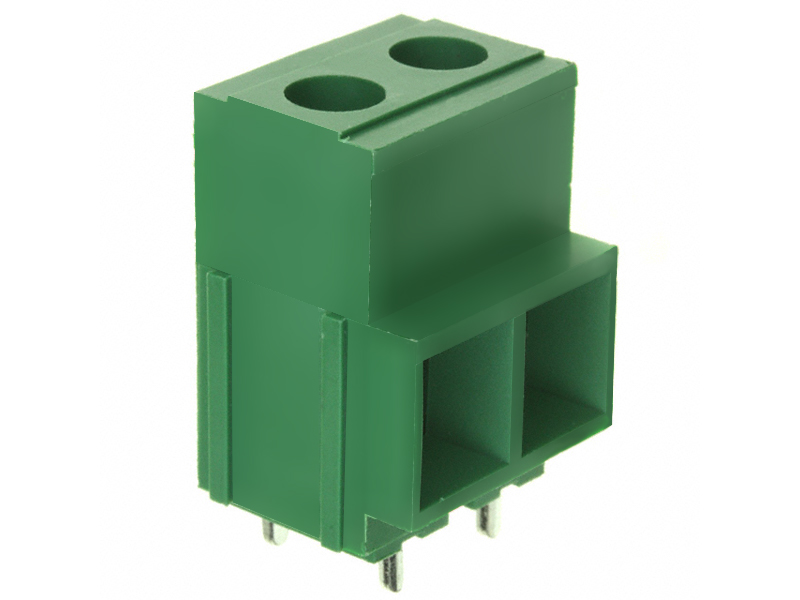

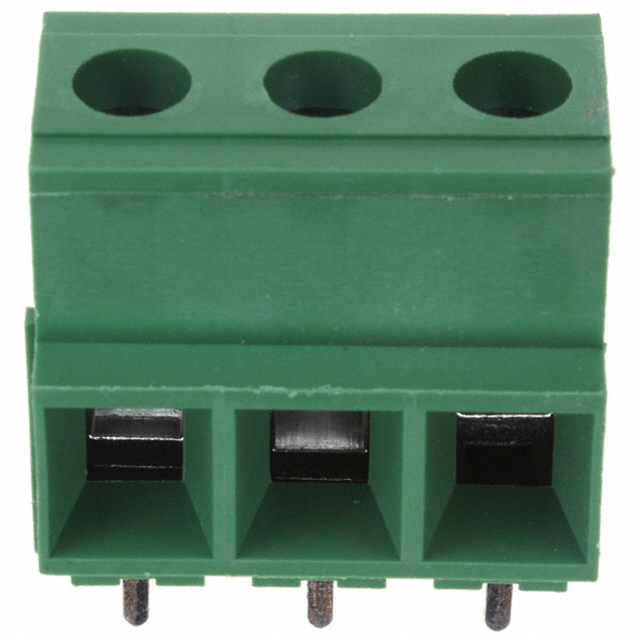

10.16mm Screw Terminal Block Rising clamp

  • Model: KLS2-148-10.16
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material:
Screw: M4.0, steel,Zn plated
Cage: Brass, Nickel plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0,Green

Electrical:
Rated voltage: 300V
Rated current: 52A
Wire range: 20~6AWG 10mm2
Contact Resistance: 20 m Ω
Insulation resistance: 500MΩ/DC500V
Withstand voltage: AC2000V / 1 min

Mechanical:
Temp. Range: -40 ° C ~ + 105 ° C
Soldering: 250 ° C 5Sec. Max.
Torque: 1.2 Nm (10.5 Lb.) in
Strip length: 9~10 mm
