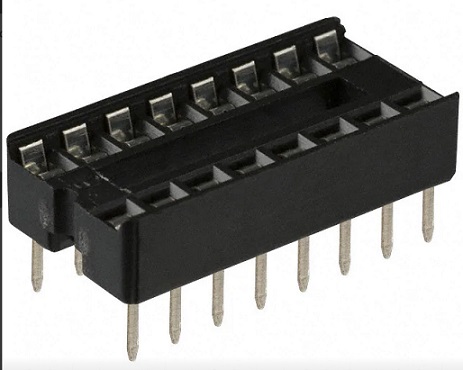

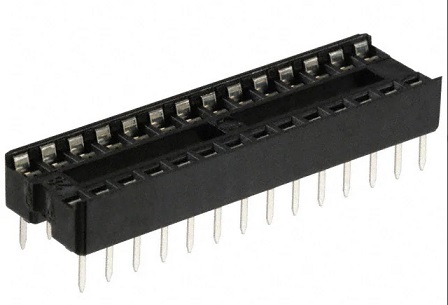

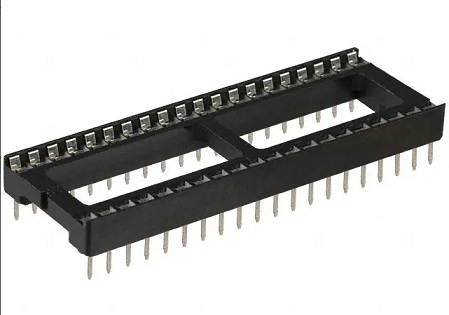

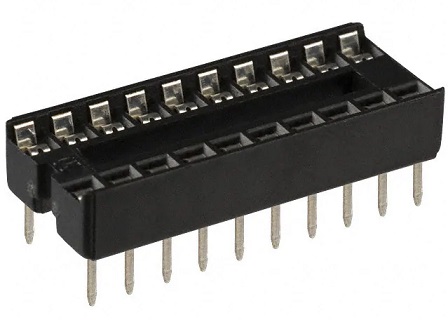

1.778mm Pitch IC Socket Connector With Dip Type

Order Information
KLS1-216B-XX-1
XX-No.of 16~64pin
D Size:1=10.16mm 2=15.24mm 3=19.05mm
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Phosphor Bronze
Plating: Tin plated 100u” over 50u” nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Insulator Resistance: 5000M Ohm min
Contact Resistance: 20mΩmax.
Operating Temperature: -45ºC~+105ºC
