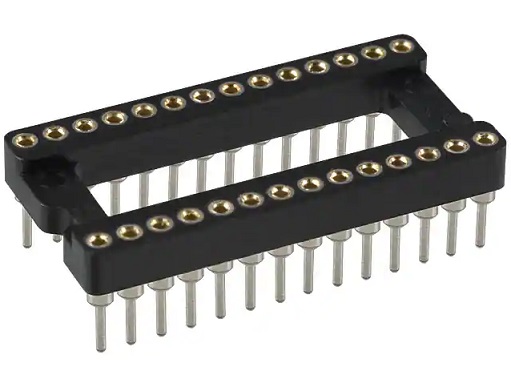

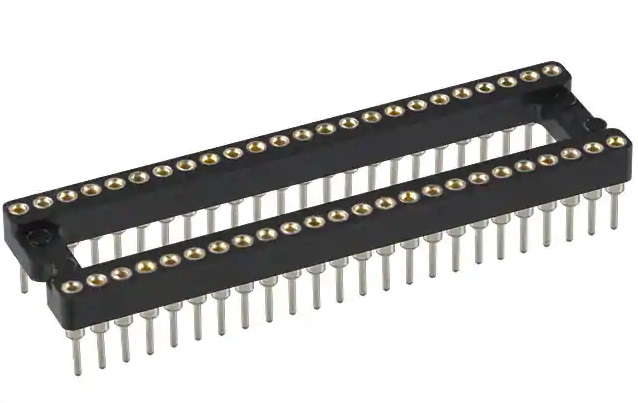

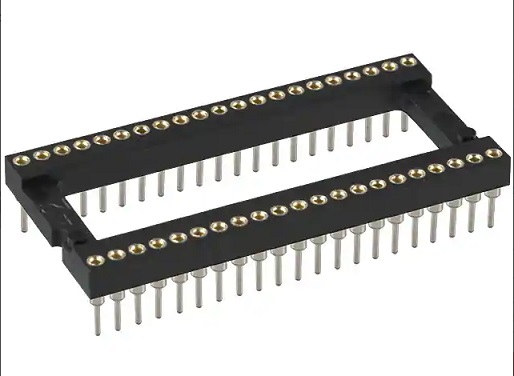

1.778mm Pitch  IC Socket Connector

Order Information
KLS1-217B-XX-1-口
XX-No.of 24~64pin
B Size_1=10.16mm  2=15.24mm  3=19.05mm
Y-Imported Beryllium copper   NONE-Domestic Phosphor Bronze

Material:
Housing: PBT UL94V~0
Contacts:Beryllium copper or Phosphor Bronze
Plating:Au 3u” or Sn over 50u” nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max.
Operating Temperature: -45ºC~+105ºC

KLS1-217B.pdf
