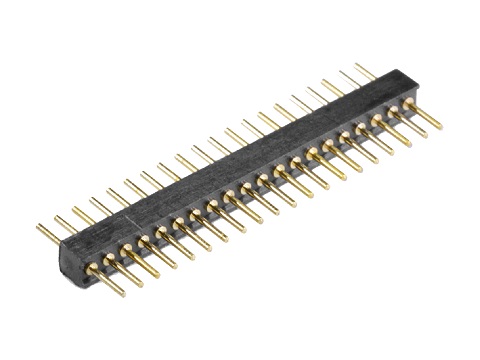

1.778mm IC Swiss Round Pin Header Connector

Order Information
KLS1-209XD-1-XX-S1
1-Single layer
XX-Total pin number  (No.of 2~50pins)

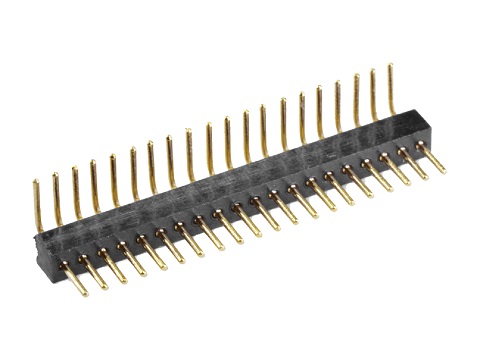

S1-Straight Pin  R-Right Angle Pin

Material:
Housing: 30% Glass filled PPS UL94V-0
Contacts: Brass
Plating: Gold 1.25u” over 50u” nickel
Electrical Characteristics:
Current Rating: 2.0 AMP
Voltage Rating: 60V AC/DC
Insulator Resistance: 1000M Ohm min at 100V AC
Contact Resistance: 20m Ohm max
Operating Temperature: -40ºC~+105ºC

KLS1-209XD.pdf
