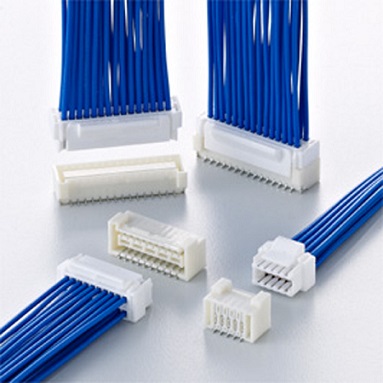

1.50mm Pitch ZH Type Wire To Board Connector

Order information:
KLS1-MD-1.50-2×05-H
Pitch:1.50mm
XX-No.of 10~40 pins
H-Housing  T-Terminal  VM-Vertical SMT Pin

Specifications
◆Material: PA66/LCP UL 94V-0
◆Contact : Phosphor Bronze
◆Finish : Plated Tin over Nickel
◆Current rating:2.0A AC,DC
◆Voltage rating:100V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:500MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:30mΩ Max.
◆Wire range  : AWG#32~#22
