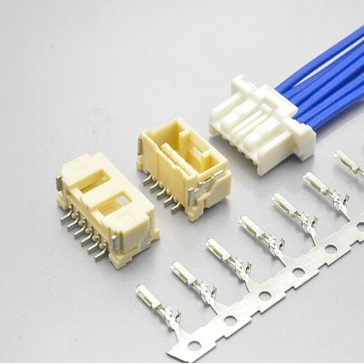

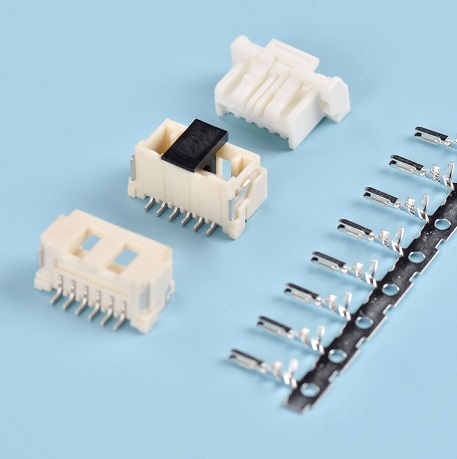

1.50mm Pitch Molex 502578 502584 502585 Wire To Board Connector

Order information:
KLS1-ML-1.50-XX-H
Pitch:1.50mm
XX-No.of 02~15 pins

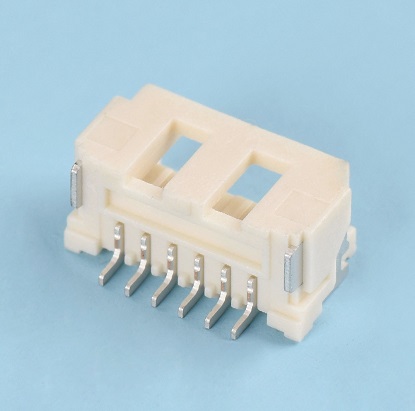

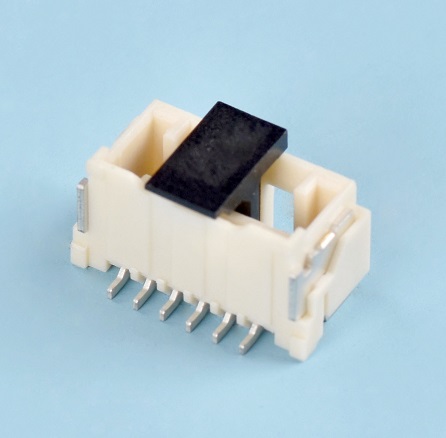

H-Housing  T-Terminal  VM-Vertical SMT Pin  RM-Horizontal SMT Pin

Material:
Insulator:PBT/Nylon 9T,UL 94V-0
Pin:Brass
Plating:Tin plated over Nickel
Applicable wires:AWG #24

Specifications:
Current rating:2A AC,DC
Voltage rating:100V AC,DC
Temperature range:-25%%DC ~ + 85%%DC
Insulation resistance:1000MΩ Min
Withstanding Voltage:800V AC/minute
Contact resistance:20mΩ Max.

KLS1-ML-1.50.pdf
