1.50mm Pitch JST ZH Type Wire To Board Connector

  • Model: KLS1-XL1-1.50
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

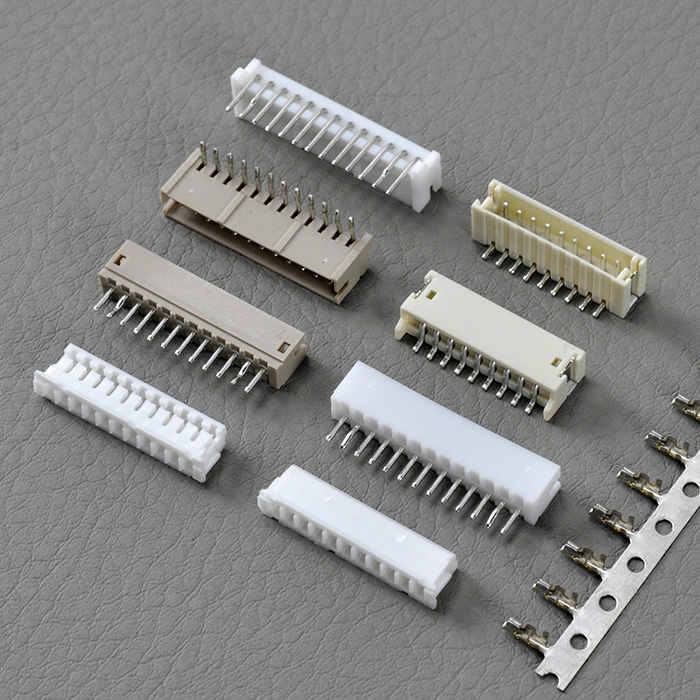

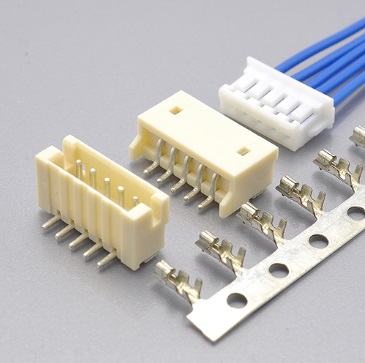

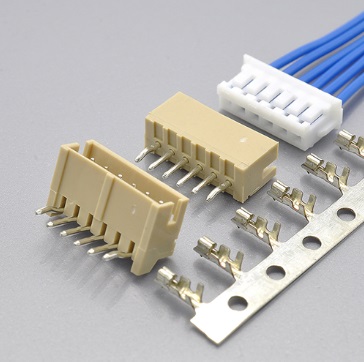

1.50mm Pitch JST ZH Type Wire To Board Connector

Order information:
KLS1-XL1-1.50-XX-H
Pitch:1.50mm
XX-No.of 02~16 pins
H-Housing  T-Terminal  S-Straight male pin R-Right angle male pin  VM-Vertical SMT Pin  RM-Horizontal SMT Pin

Specifications
◆Material: PA66/LCP UL 94V-0
◆Contact : Phosphor Bronze
◆Finish : Plated Tin over Nickel
◆Current rating:1.0A AC,DC
◆Voltage rating:100V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:500MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range  : AWG#32~#22
