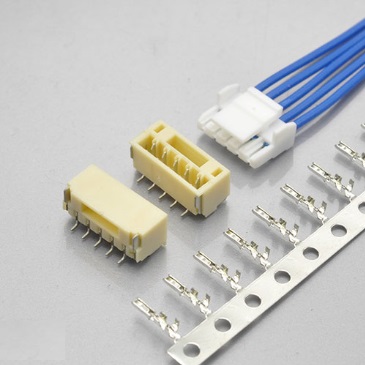

1.50mm Pitch JST GH1.5 Wire To Board Connector
- Product Details
1.50mm Pitch JST GH1.5 Wire To Board Connector
Order information:
KLS1-XL3-1.50-XX-H
Pitch:1.50mm
XX-No.of 02~06 pins
H-Housing T-Terminal VM-Vertical SMT Pin RM-Horizontal SMT Pin
Specifications
◆Material: PA66/PA9T UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:1A AC,DC
◆Voltage rating:50V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:30mΩ Max.
◆Wire range : AWG#26~#30
