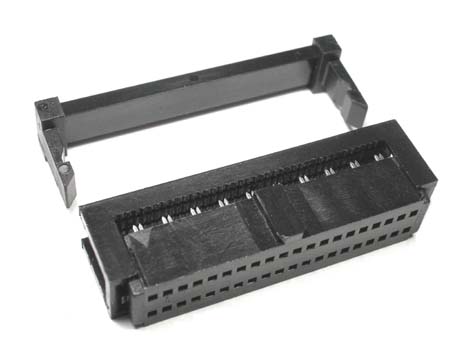

1.27×2.54mm Pitch IDC Socket Connector

Order Information:
KLS1-204D-XX-B
XX-No.of 10~100pins
Color: B=Black G=Gray L=Blue

Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Phosphor Bronze
Plating:Au or Sn over 50u” nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Insulator Resistance: 1000M Ohm min.
Withstand Voltage: 500V AC / Minute
Contact Resistance: 30m Ohm max.
Operating Temperature: -40ºC~+105ºC

KLS1-204D.pdf
