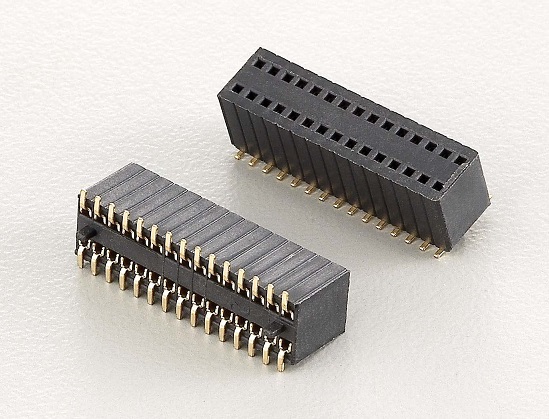

1.27×2.54mm Pitch Female Header Connector,Height: 4.6mm

Order Information
KLS1-208D-5.7-2-XX-T3-L1xL2
Height: 5.7mm
2-Double layer
XX-Total pin number  (No.of 2~80pin)
SMT_T=Without post T3=With post
Size:L1xL2

Material:
Housing: PA6T or LCP UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u” Ni

Electrical Characteristics:
Current Rating: 1.0 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
