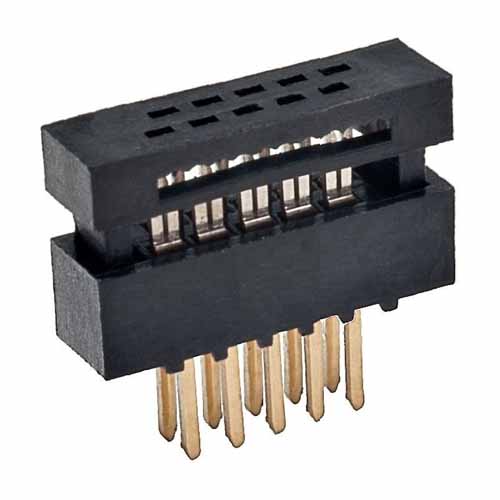

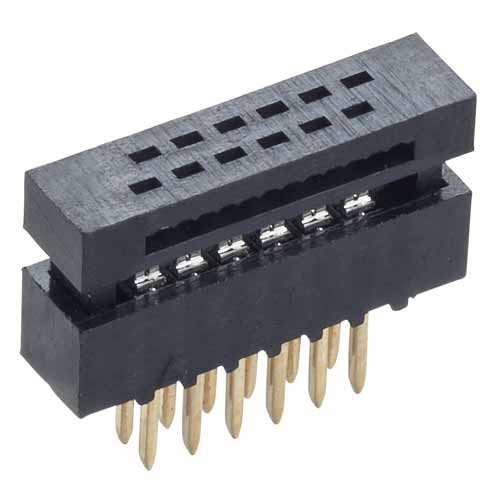

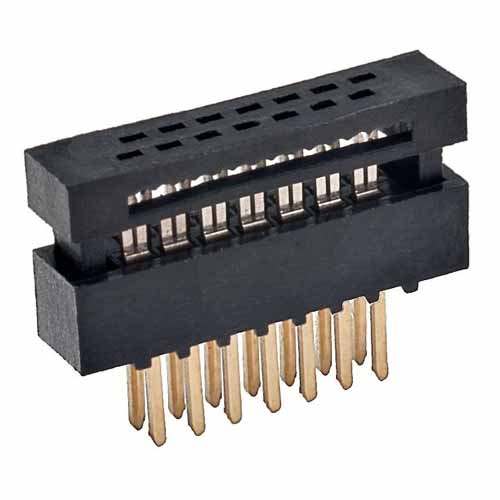

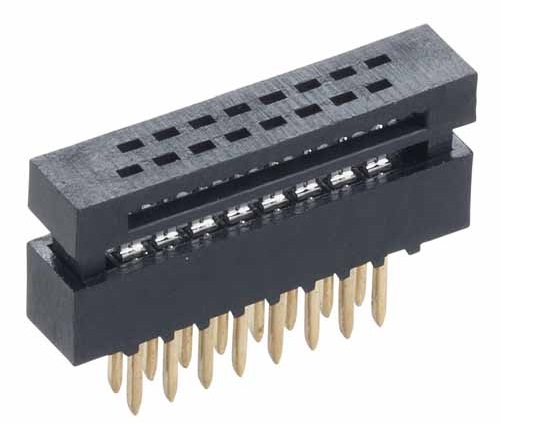

1.27×1.27mm Pitch Dip Plug IDC Connector
- Product Details
1.27mm Pitch IDC Connector Dip Plug Type (0.635mm pitch flat cable)
Order Information:
KLS1-205C-XX-B
XX-No.of 06~68 pin
Color: B=Black G=Gray
Material:
Housing: PBT UL94V-0, Black
Contacts: Brass
Plating:Au or Sn over 50u” nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Insulator Resistance: 1000M Ohm min.
Withstand Voltage: 500V AC / Minute
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
