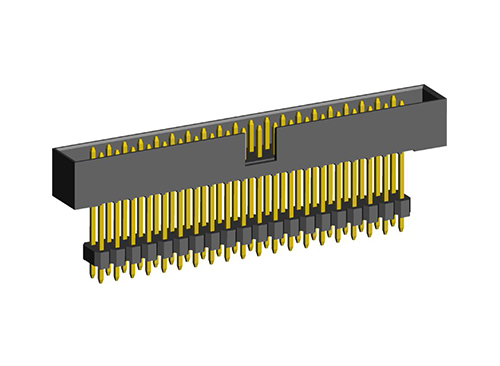

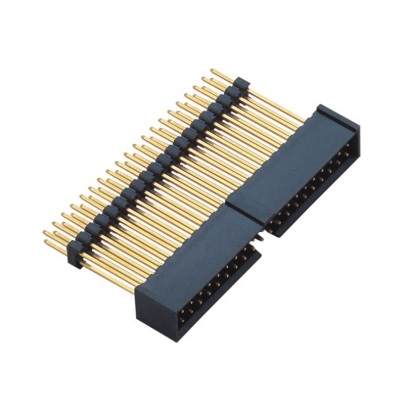

1.27×1.27mm Pitch Box Header Connector

Order Information:
KLS1-202CA-XX-S-B-PBxPC-口
XX-No.of 06~100 pin

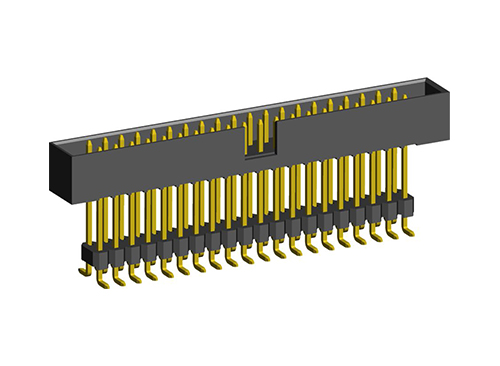

S-Straight pin T-SMT Pin
Color: B-Black G-Gray L-Blue
Size:PBxPC
Material:NONE=PA6T C=LCP D=PA9T

Material:
Housing: PA6T UL94V-0 / LCP UL94V-0
Contacts: Brass
Plating:Gold 1u” over 50u” nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:500V AC/DC
Operating Temperature: -45ºC~+105ºC

KLS1-202CA.pdf
