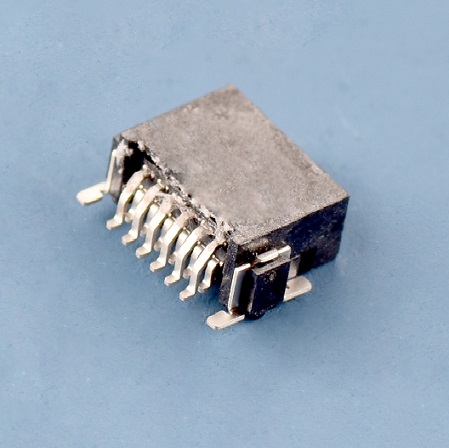

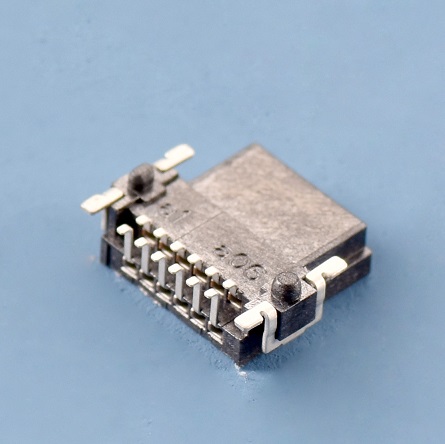

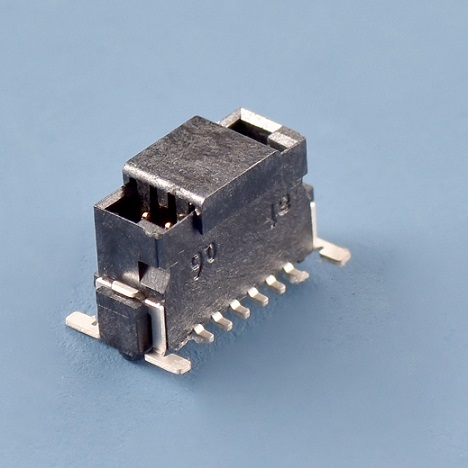

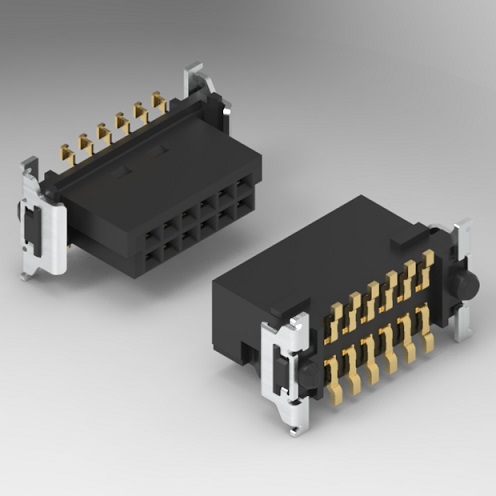

1.27mm Pitch SMC board to board connector

Order information:
KLS1-B0112-625F-XX-T3R
Pitch: 1.27mm
Female Height:3.85mm 6.25mm 9.05mm 13.65mm & Male Height:4.20mm 6.75mm 8.25mm 9.85mm
F-Female  M-Male
XX-No.of 12~80 pins
T3-SMD With post   T-SMD Without post

Packing_R=Reel   T-Tube

Specifications
◆Material: LCP UL 94V-0,Black
◆Contact : Phosphor Bronze
◆Finish : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:0.5A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:25mΩ Max.

KLS1-B0112.pdf
