1.27mm Pitch SIP Socket Connector

Order Information
KLS1-209D-1-XX-S-口
1-Single layer   2-Double layer  3-Three layer
XX-Total pin number  (No.of 2~120pins)

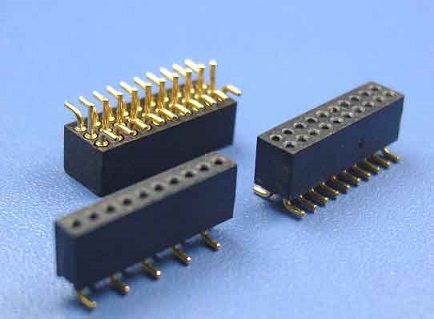

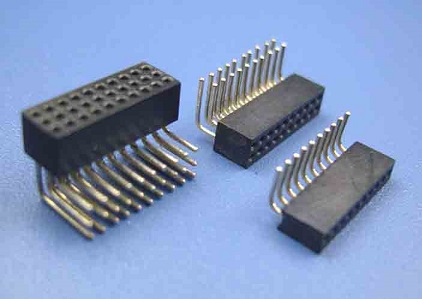

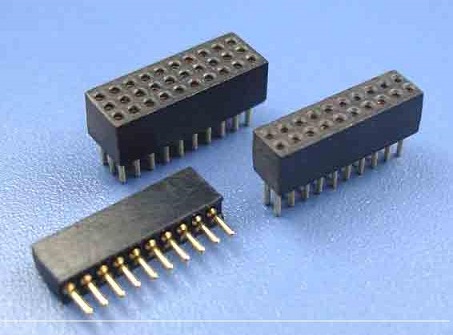

S-Straight Pin  R-Right Angle Pin   T-SMT Pin
Y-Imported Beryllium copper   NONE-Domestic Phosphor Bronze

Material:
Housing: 30% Glass filled PPS UL94V-0
Contacts:Beryllium copper or Phosphor Bronze
Plating: Gold 1.25u” over 50u” nickel
Electrical Characteristics:
Current Rating: 1 AMP
Contact Resistance: 20m Ohm max
Operating Temperature: -45ºC~+105ºC

KLS1-209D.pdf
