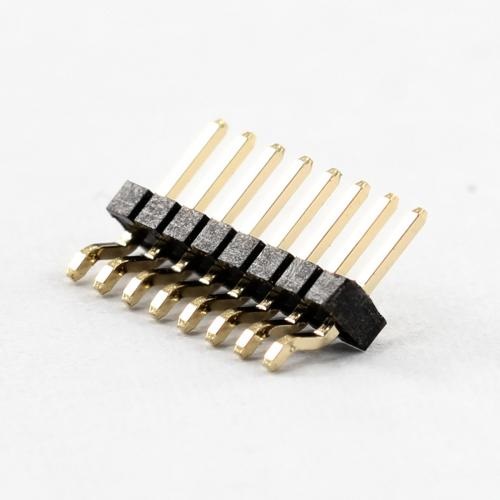

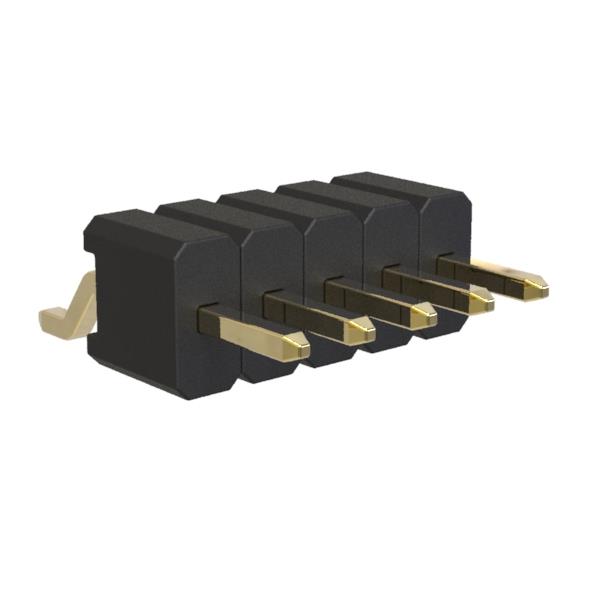

1.27mm Pitch Pin Header Connector SMD

Order Information
KLS1-207CA-1.50-1-XX-PA*PC*PB-G0-W-R
Plastics Height:1.50、2.00、2.50mm

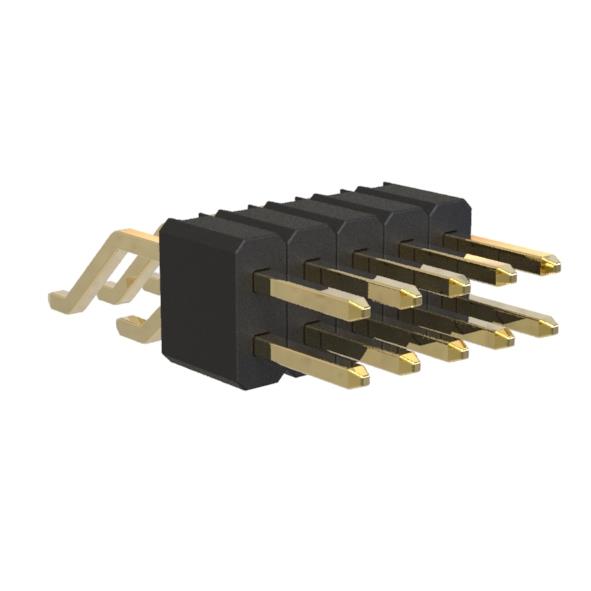

1-Single layer  2-Double layer
XX-Total pin number  (No.of 2~80pin)
SIZE:PA*PC*PB
Plating_G0=Gold Flash  G1=1u” Gold   G10=10u” Gold   G15=15u” Gold   G30=30u” Gold
N=W/O post  W=with post

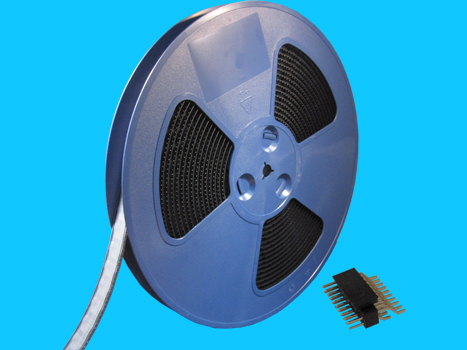

Packing: 0=PE Bag    A=Tray    T=Tube P=Tube+Cap   R=Reel+Cap

Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u” over 50u” nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max.
Withstanding Voltage:AC 500V/Minute
Operating Temperature: -45ºC~+105ºC

KLS1-207CA.pdf
