1.27mm Pitch PCI Card Connector 120 Pin

  • Model: KLS1-503C
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

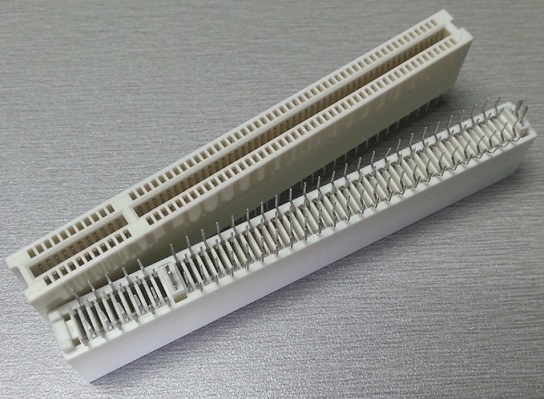

1.27mm Pitch PCI Card Connector 120 Pin

Order Information
KLS1-503C-120-S-W
120-No.of 120pin
S-Straight pin

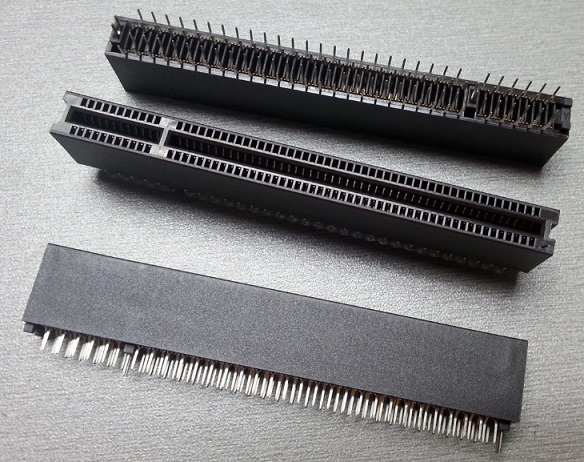

W-White G-Green B-Black

MATERIAL
INSULATOR: GLASS-REINFORCED THERMOPLASTIC.
CONTACT: COPPER ALLOY.
PLATING: MATING AREA-GOLD FLASH GOLD OVER NICKEL.SOLDER AREA-TIN/LEAD OVER NICKEL.

ELECTRICAL
VOLTAGE RATING: 250 VAC RMS.
CURRENT RATING: 1 AMP.
DIELECTRIC WITHSTANDING VILTAGE: 500 VAC RMA 60Hz FOR 1 MINUTE.
INSULATION RESISTANCE: 1000 MEGOHMS MIN AT 500 VDC.
CONTACT RESISTANCE: 30 MILLIOHMS MAX. AT 1 AMP DC.

MECHANICAL
RETENTION FORCE: 460 GRAMS MIN PER CONTACT.
INSERTION FORCE: 230 GRAMS MAX PER CONTACT PAIR.
WITHDRAWAL FORCE: 15 GRAMS MIN PER CONTACT PAIR.
