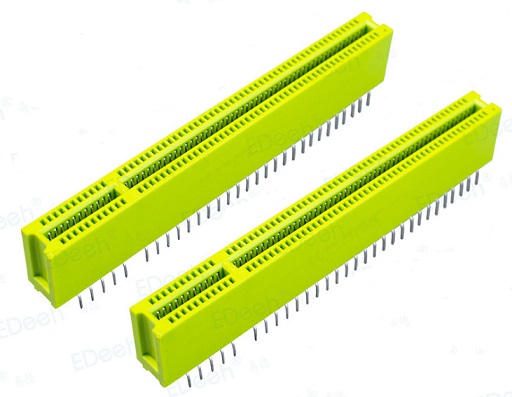

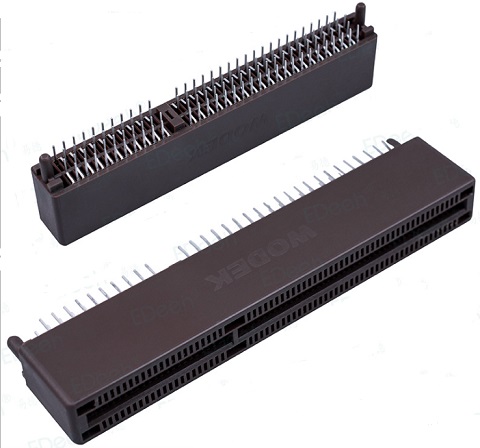

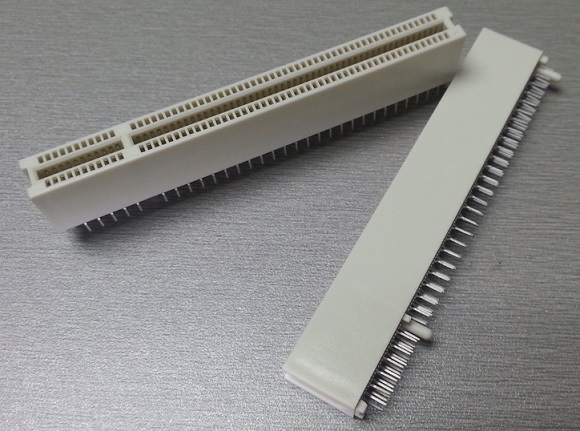

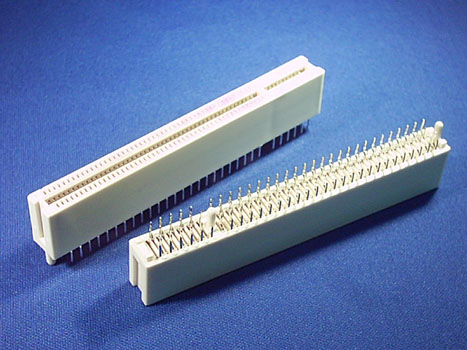

1.27mm Pitch PCI Card Connector 120 Pin
- Product Details
1.27mm Pitch PCI Card Connector 120 Pin
Order Information
KLS1-503B-120-S-W
120-No.of 120pin
S-Straight pin
W-White G-Green B-Black
MATERIAL
INSULATOR: GLASS-REINFORCED THERMOPLASTIC.
CONTACT: COPPER ALLOY.
PLATING: MATING AREA-GOLD FLASH GOLD OVER NICKEL.SOLDER AREA-TIN/LEAD OVER NICKEL.
ELECTRICAL
VOLTAGE RATING: 250 VAC RMS.
CURRENT RATING: 1 AMP.
DIELECTRIC WITHSTANDING VILTAGE: 500 VAC RMA 60Hz FOR 1 MINUTE.
INSULATION RESISTANCE: 1000 MEGOHMS MIN AT 500 VDC.
CONTACT RESISTANCE: 30 MILLIOHMS MAX. AT 1 AMP DC.
MECHANICAL
RETENTION FORCE: 460 GRAMS MIN PER CONTACT.
INSERTION FORCE: 230 GRAMS MAX PER CONTACT PAIR.
WITHDRAWAL FORCE: 15 GRAMS MIN PER CONTACT PAIR.
