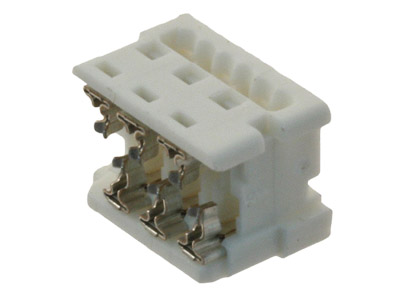

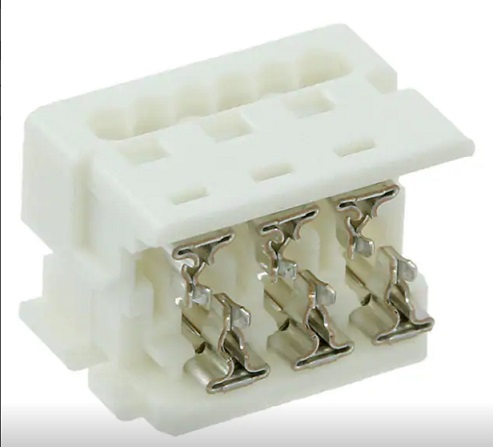

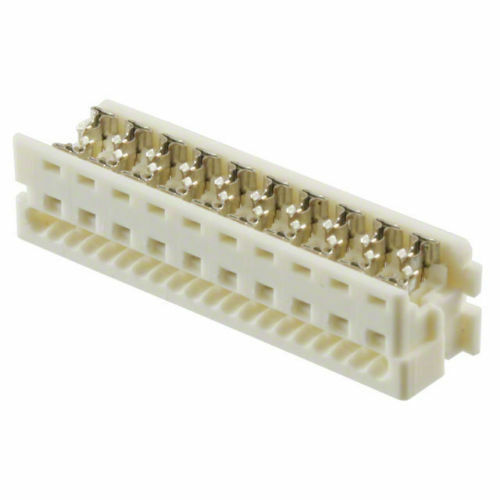

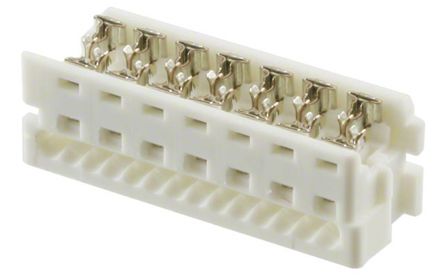

1.27mm Pitch Molex 90327 Picoflex IDC Connector

Order Information:
KLS1-206-XX-W
XX-No.of 04~26pin
Color: W=White

Material:
Housing: 30% Glass filled PBT UL94V-0,White
Contacts: Phosphor Bronze
Plating: Sn over 50u” nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Voltage Rating: 250V AC
Insulator Resistance: 1000M Ohm min.
Withstand Voltage: 500V AC / Minute
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC

KLS1-206.pdf
