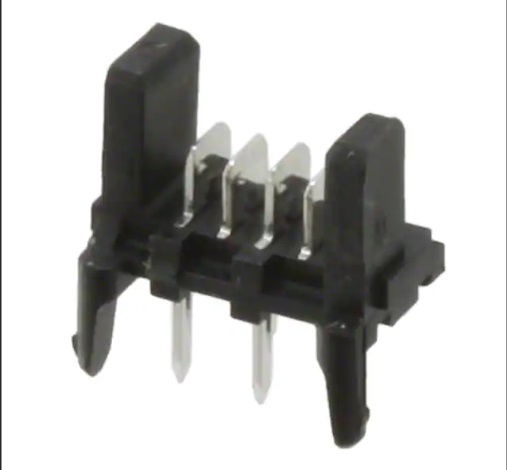

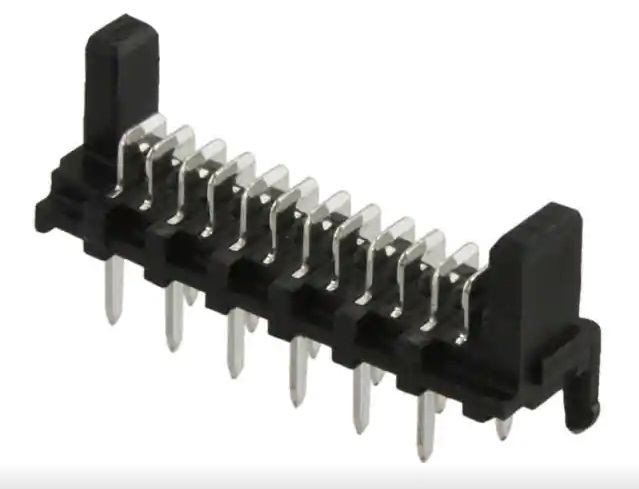

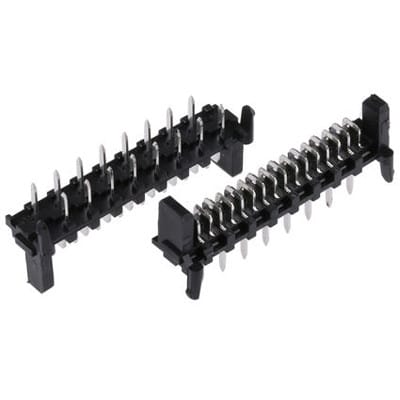

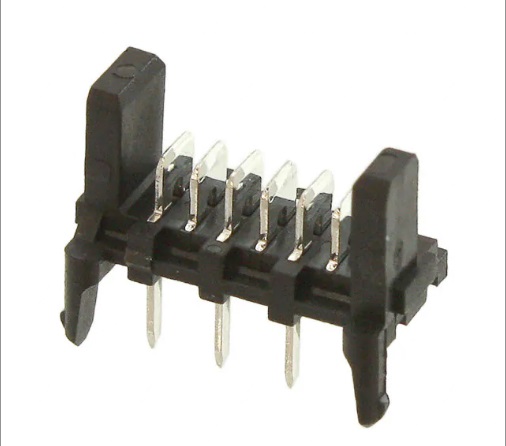

1.27mm Pitch MOLEX 90325 Picoflex Ribbon Cable Connectors

Order Information:
KLS1-MICS-XX
XX-No.of 04~26pin

Material:
Housing: PA6T UL94V-0,Black
Contacts: Brass
Plating: Sn over 50u” nickel
Electrical Characteristics:
Current Rating: 1.2 AMP
Voltage Rating: 250V AC
Insulator Resistance: 1000M Ohm min.
Withstand Voltage: 500V AC / Minute
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC

KLS1-MICS-XX.pdf
