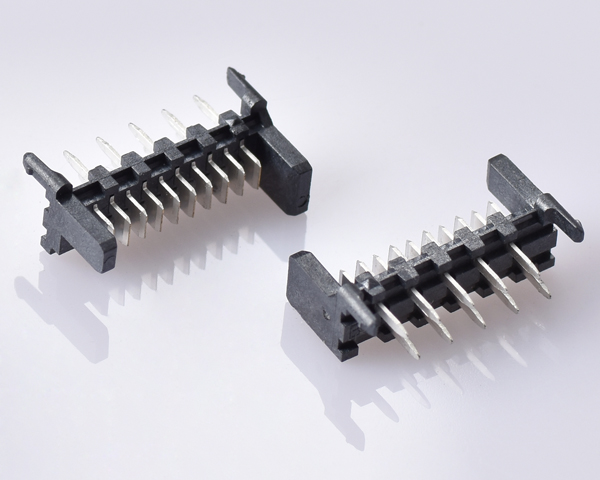

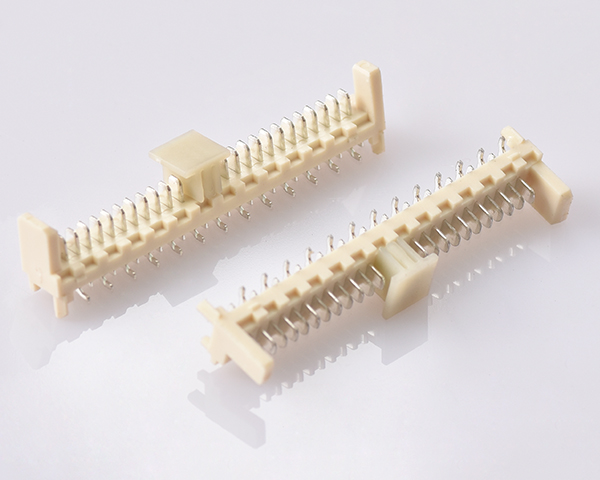

1.27mm Pitch molex 90325 Picoflex IDC DIP 180 Connector&1.27mm Pitch molex 90814 Picoflex IDC SMT Connector

Model: L-KLS1-204DT
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

Material:
Housing:PA6T/PBT,UL94V-0
Contacts:Brass
Plating:Tin plated

Electrical Characteristics:
Current Rating:2.4A AC,DC
Withstand Voltage:500V AC/minute
Insulator Resistance: 1000MΩ min.
Contact Resistance:20mΩ max.
Operating Temperature: -40°C~+105°C
